What equipment is needed for the in-mold injection molding process?

In the contemporary marketplace, the paradigm of consumer behavior has undergone a seismic shift. Today's consumers are not merely purchasing a product for its core function; they are investing in an experience, a lifestyle, and a brand identity. While factors like taste, health benefits, and ingredient purity remain paramount, the role of packaging has evolved from a simple protective shell to a critical marketing tool and a decisive factor in the purchasing decision. A novel, aesthetically striking, and high-quality package can captivate attention, communicate brand value, and create a perception of premium quality. It is within this context that In-Mold Labeling (IML) has emerged as a revolutionary packaging technology, offering unparalleled durability and visual appeal.

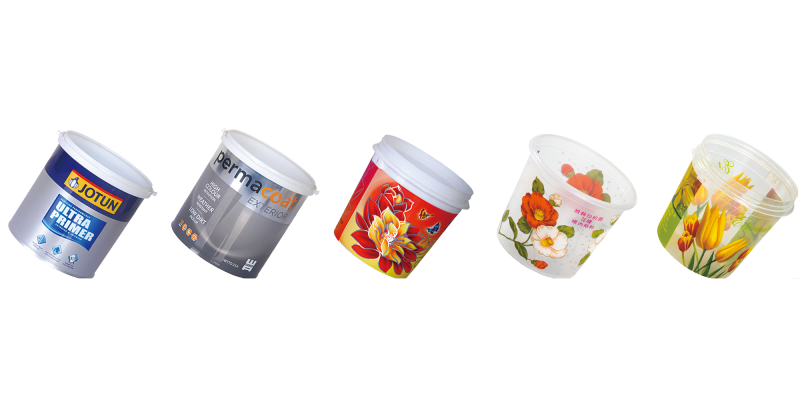

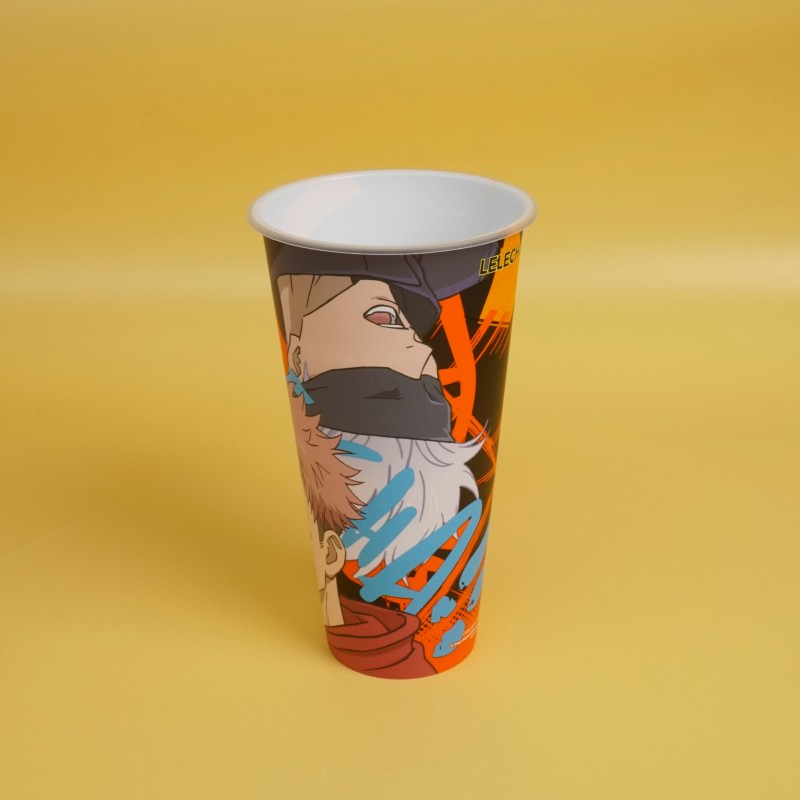

IML, a process where a pre-printed label is placed into a mold and fused with the plastic container during the injection molding cycle, has been a mainstream solution in Europe and North America for decades. After several years of technological adoption and refinement, it is now witnessing large-scale application and rapid growth within China's sophisticated manufacturing sector. This method produces a seamless integration of label and container, resulting in a scratch-resistant, moisture-proof, and exceptionally vibrant finish that cannot be achieved with traditional glue-applied or sleeve labels. For brands competing in saturated markets like dairy, ice cream, condiments, and household chemicals, IML provides a distinct competitive edge.

So, what does it take to establish a successful IML production line? The process is a symphony of precision engineering, requiring a suite of specialized equipment working in perfect harmony. The essential components include high-quality film-insert molds, high-speed injection molding machines, dedicated labeling manipulators (robots), and a range of critical auxiliary equipment.

The Core of the Process: The IML Injection Mold

The mold is the very heart of the IML process, and its design and construction are where success or failure is determined. Achieving high-quality, high-speed production of thin-walled IML containers is an endeavor that demands more than just capital investment. It requires a manufacturer with significant scale, advanced equipment, and, most importantly, mold designers with profound and mature experience in IML-specific challenges.

The demands on an IML mold are exceptionally high. As the process is designed for high-speed, high-precision cycles, the mold itself must possess exceptional structural strength to withstand constant clamping forces and rapid cycling without deformation. Furthermore, the design of the cooling system is arguably one of the most critical aspects. An inefficient cooling system leads to uneven temperatures, resulting in warped parts, extended cycle times, and visible defects on the final product's surface. A superior cooling system ensures uniform heat dissipation, which is essential for maintaining dimensional stability and achieving a flawless surface finish.

Finally, the polishing effect of the mold cavity must be excellent. Any minor imperfection, texture, or flaw on the mold's surface will be perfectly replicated onto the fused-in label, creating visible defects. A mirror-finish polish is often required to ensure the label's graphics appear sharp, vibrant, and unblemished, directly translating the quality of the mold into the quality of the final product.

The Powerhouse: The High-Speed Injection Molding Machine

In-Mold Labeling is a fully automated production process where consistency and speed are king. The injection molding machine used must be engineered to meet rigorous performance criteria. It must feature a fast injection speed to fill the thin-walled mold cavity before the plastic begins to solidify, and a short overall molding cycle to maximize economic output. This necessitates high injection pressure and a large mold opening stroke to provide ample clearance for the robotic arm to place the label accurately and retrieve the finished part.

However, the single most important characteristic of an IML-capable injection molding machine is exceptional accuracy and stability. The machine must be able to consistently return to the exact same mold opening position, cycle after cycle. If the machine's stability is compromised, even slightly, the precision of the label placement by the robot will be lost. A variance of just a millimeter can cause misalignment, wrinkling, or the label being crushed by the closing mold, leading to a dramatic increase in the defective product rate. Therefore, investing in a true high-speed, high-stability machine is not an option but a necessity for profitable IML production.

The Precision Hand: The In-Mold Labeling Manipulator

The in-mold manipulator, or robot, is the crucial link between the label stack and the mold. Its task is to pick up a pre-cut label, transport it into the open mold, place it securely against the cavity wall with perfect registration, and retract before the mold closes—all within a matter of seconds. These robots are engineered for blistering speed and pinpoint accuracy.

There are generally two configurations: top-entry and side-entry robots, chosen based on the mold design and the optimal path for label insertion. While the technology is sophisticated, the cost of a dedicated IML manipulator is a manageable investment considering the value it adds. Its primary requirement is unwavering efficiency and reliability, as any failure or delay in its operation directly halts the entire production line.

The Supporting Cast: Essential Auxiliary Equipment

A fully automated and optimized IML production line relies on a suite of auxiliary equipment to ensure consistent quality. While these components represent an additional cost, they are fundamental to a stable process.

• Dryers: Plastic resin, particularly hygroscopic materials like PET or PP, must be thoroughly dried before molding. Any moisture content can cause cosmetic defects like splay marks or silver streaks, ruining the appearance of the label.
• Chillers: These units are vital for controlling the temperature of the mold cooling water, which directly impacts cycle time and part quality.
• Air Compressors: Provide clean, dry air for powering the robotic actuators, ejection systems, and label separation mechanisms.
• Feeders (Hoppers) and Conveyor Belts: Automate the handling of raw material and the transportation of finished products out of the press area, completing a closed-loop automated system.

In conclusion, establishing a successful IML operation is a significant undertaking that hinges on the seamless integration of advanced, high-precision equipment. From the expertly designed mold and the robust injection molding machine to the nimble robot and the supporting peripherals, each component plays an indispensable role. For forward-thinking manufacturers, mastering this technology is a strategic imperative to meet modern consumer demands and secure a leading position in the competitive landscape of packaged goods.
